Geprc Speedx2 1303.5 3800kv/5500kv Motor Suitable Racing

The SPEEDX2 1303.5 motor is a cutting-edge brushless motor boasting a lightweight and sleek design, efficient heat dissipation, and a distinctive aesthetic.

Featuring a lightweight structure weighing just 6.5g (with a 90mm cable length), this device showcases an exquisite and magnificent outer rotor with a blade design. The elevated propeller platform offers enhanced compatibility with inverted mounted propeller models. It effectively prevents any contact between the high-pitch propeller and the top of the rotor, thus ensuring optimal balance and performance.

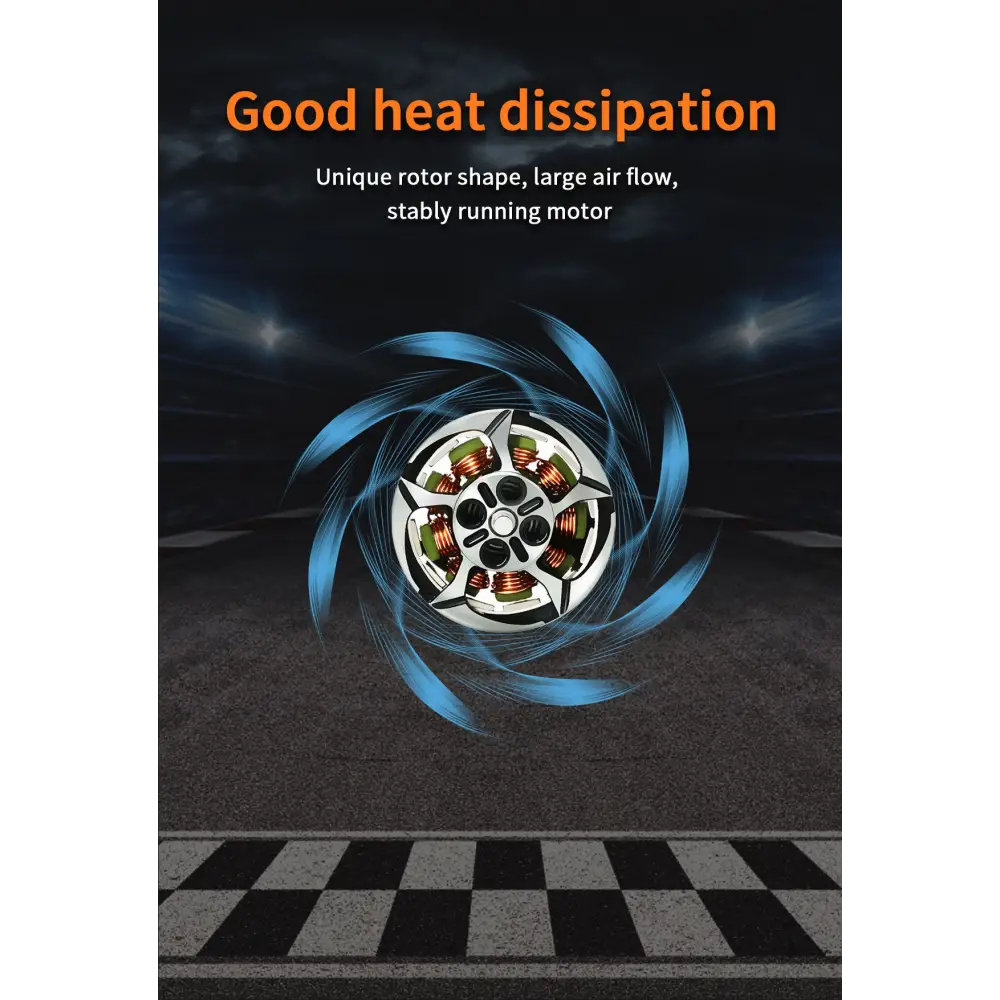

To enhance heat dissipation and efficiency while controlling the motor's working temperature, a sizable space is hollowed out to reduce weight. This optimization not only ensures optimal performance but also enhances durability and reliability.

The SPEEDX2 1303.5 motor features a meticulously crafted rotor made from high-quality 7075-T aircraft aluminum. This material not only enhances the strength but also contributes to superior performance and durability.

Experience an unparalleled smooth flying adventure with impeccable magnetic circuit design that ensures stable linearity and remarkable explosive power. Ideal for pilots seeking to construct their own 2" cinewhoop FPV drones, this technology is bound to elevate your aerial pursuits.

GE delivering lightweight, ultra-responsive, highly efficient, and incredibly powerful brushless motors for pilots.

SPECIFICATIONS

Brand Name: GEPRC

Model Number: GEPRC SPEEDX2 1303.5 3800KV/5500KV Motor

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motors

Tool Supplies: Assembly Category

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y,14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Model: SPEEDX2 1303.5-5500KV

• Configuration:9N12P

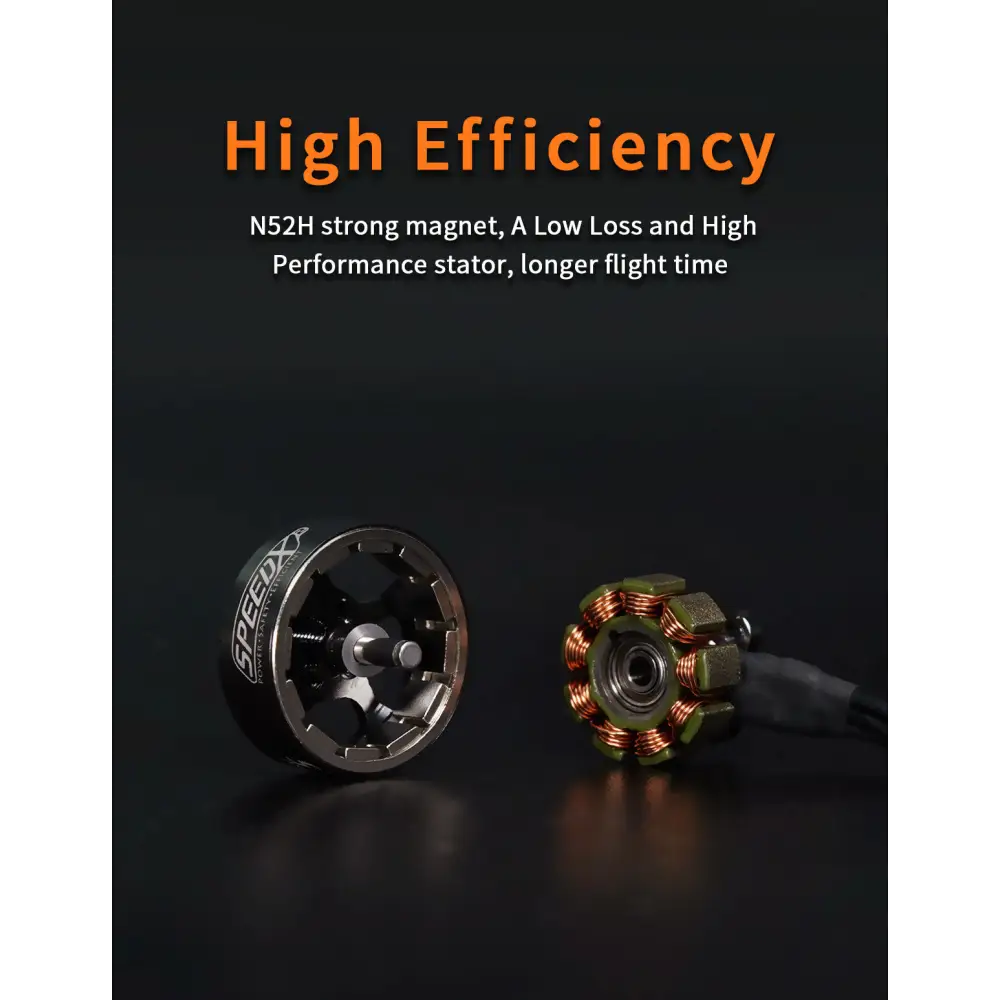

• Magnet: N52H ARC

• Stator diameter: 13mm

• Stator height: 3.5mm

• Shaft diameter: Φ2mm(in)1.5mm(out)

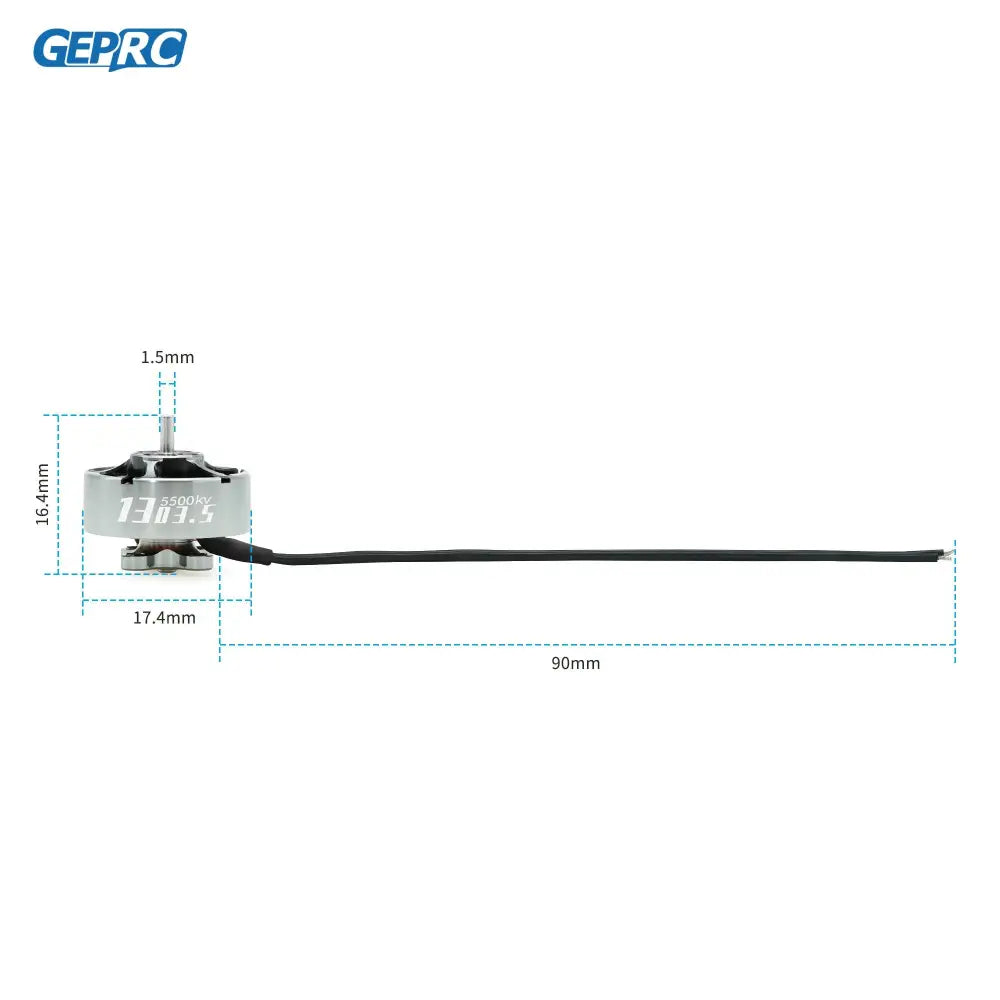

• Dimension: Φ17.35mm*11.7mm

• Lead wires: 28#AWG 90mm

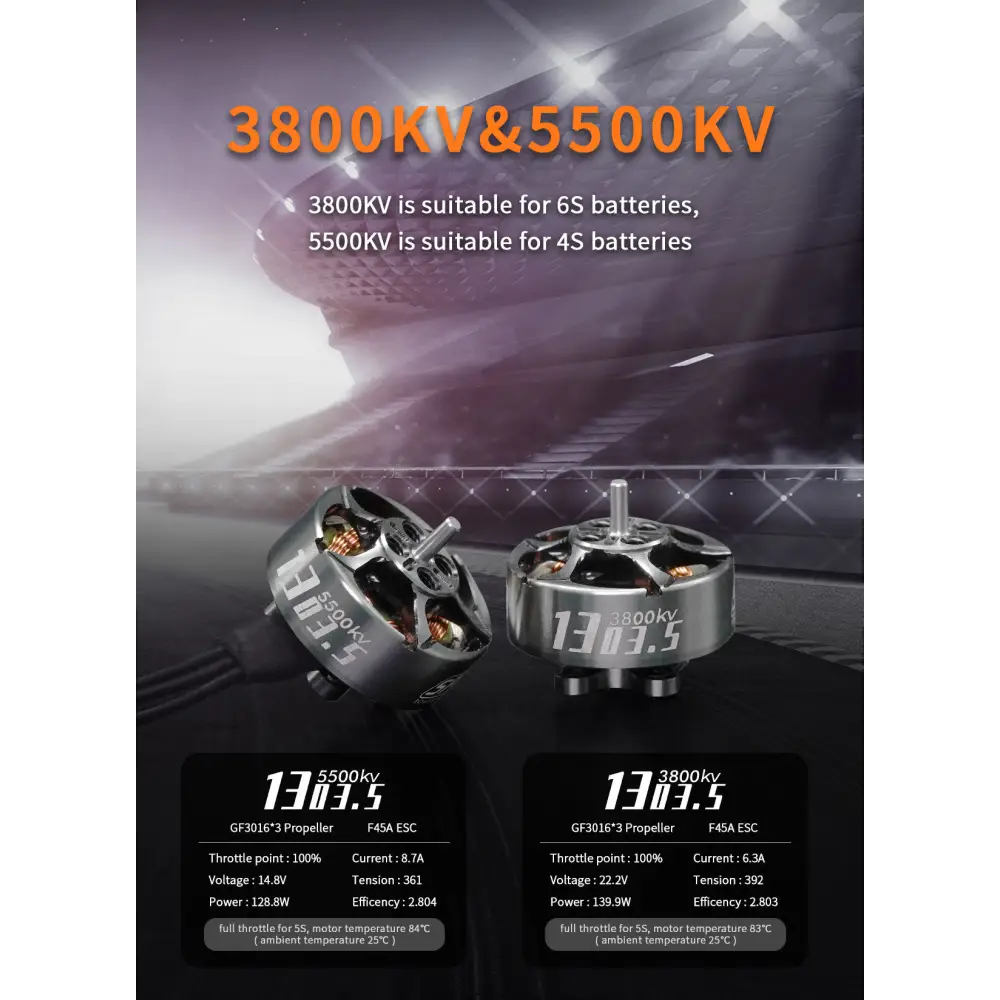

• Rated voltage (LiPo): 2-4S

• Maximum power: 128.8W

• Maximum current: 8.7A

• Recommended ESC: 35A

• Mounting hole: 9mmx9mm(M2)

• Color: titanium color

• Weight: 6.5g (90MM wire length)

• Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones

Model: SPEEDX2 1303.5-3800KV

• Configuration: 9N12P

• Magnet: N52H ARC

• Stator diameter: 13mm

• Stator height: 3.5mm

• Shaft diameter: Φ2mm(in)1.5mm(out)

• Dimension: Φ17.35mm*11.7mm

• Lead wires: 28#AWG 90mm

• Rated voltage (LiPo): 4-6S

• Maximum power: 139.9W

• Maximunm current: 6.3A

• Recommended ESC: 35A

• Mounting hole: 9mmx9mm(M2)

• Color: titanium color

• Weight: 6.5g (90MM wire length)

• Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones

PACKAGE

1 x SPEEDX2 1303.5 motor
6 x M2*6mm screws
6 x M2*8mm screws
