24pcs 6 Colors Pre-crimped Cables 20cm Silicon Wire
Use: Vehicles & Remote Control Toys
RC Parts & Accs: Connectors/Wiring
Material: Composite Material
Brand Name: XTORI
Demo video URL: https://youtu.be/VJSewbA8vL0

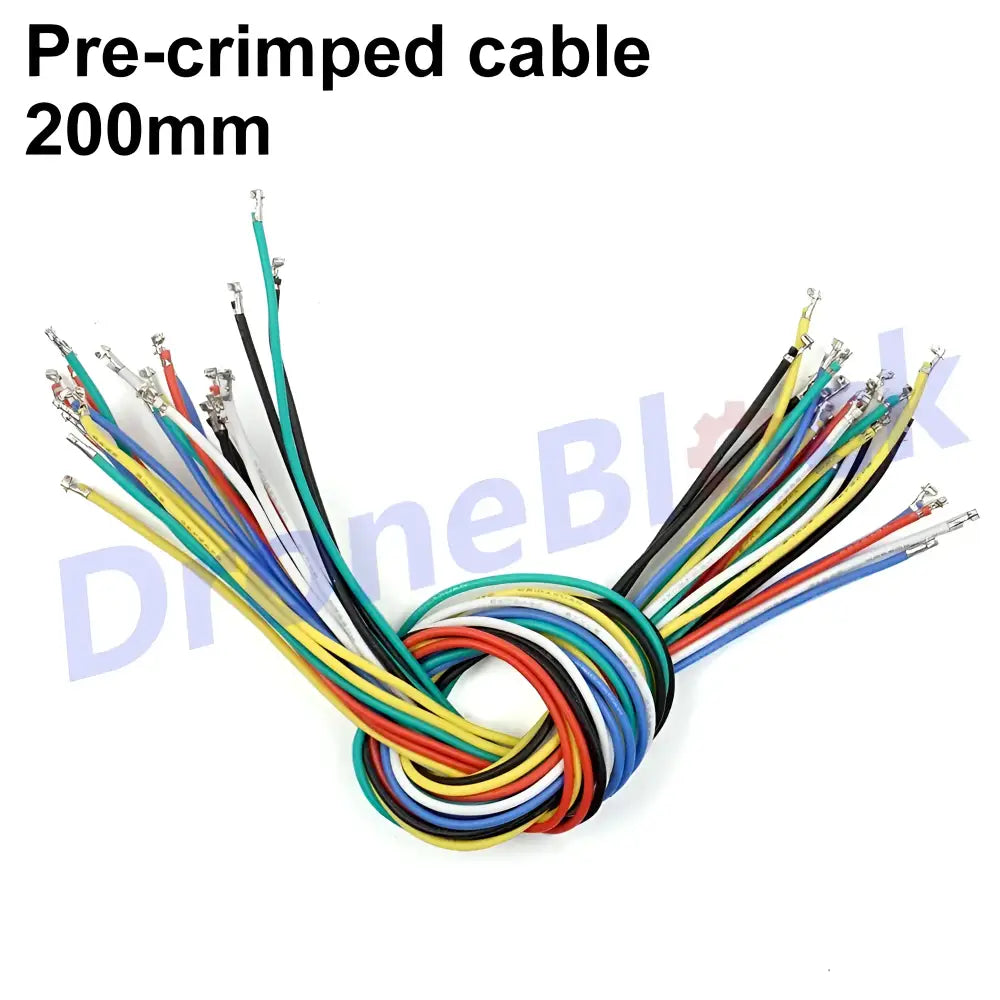

200mm Pre-crimped Cables * 24pcs
the options means:

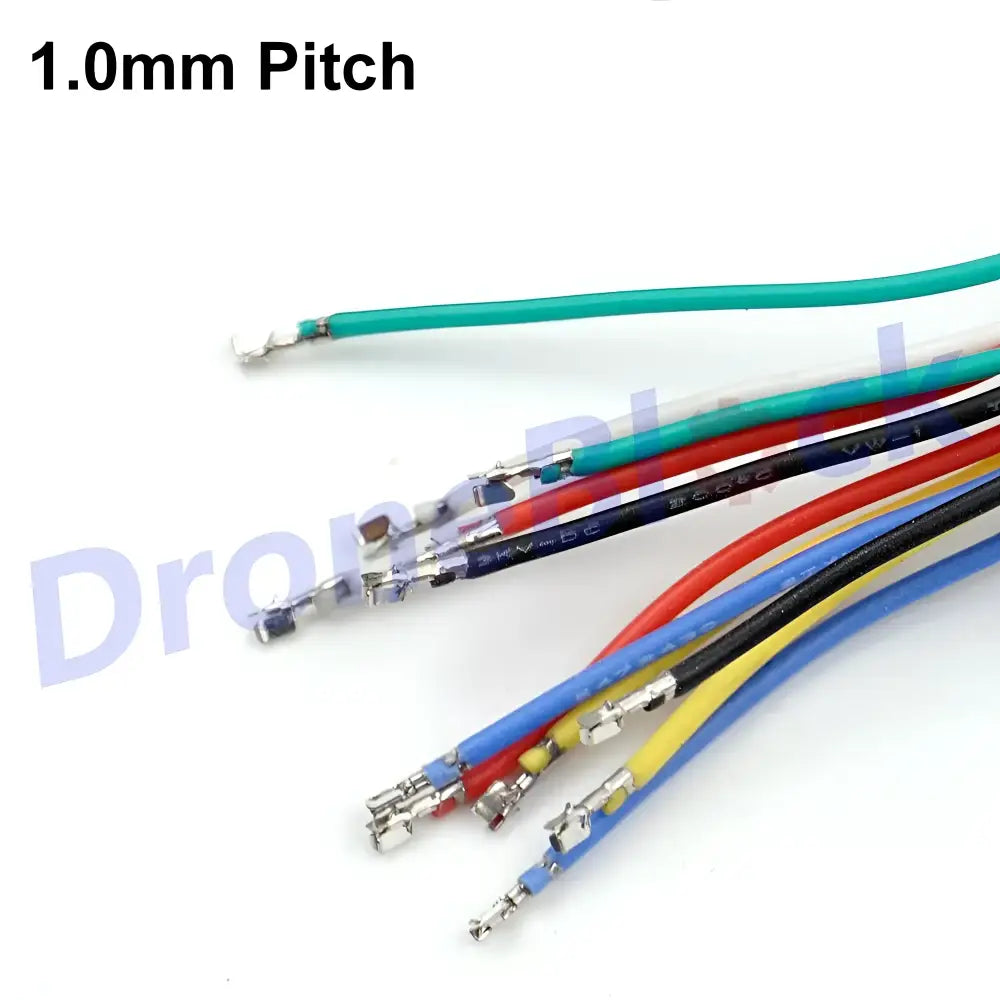

1.0 to 1.0mm pitch: 24pcs ( 6 colors, each color 4 cables)
1.0 to 1.25mm pitch: 24pcs ( 6 colors, each color 4 cables)
1.0 to 2.54mm pitch: 24pcs ( 6 colors, each color 4 cables)

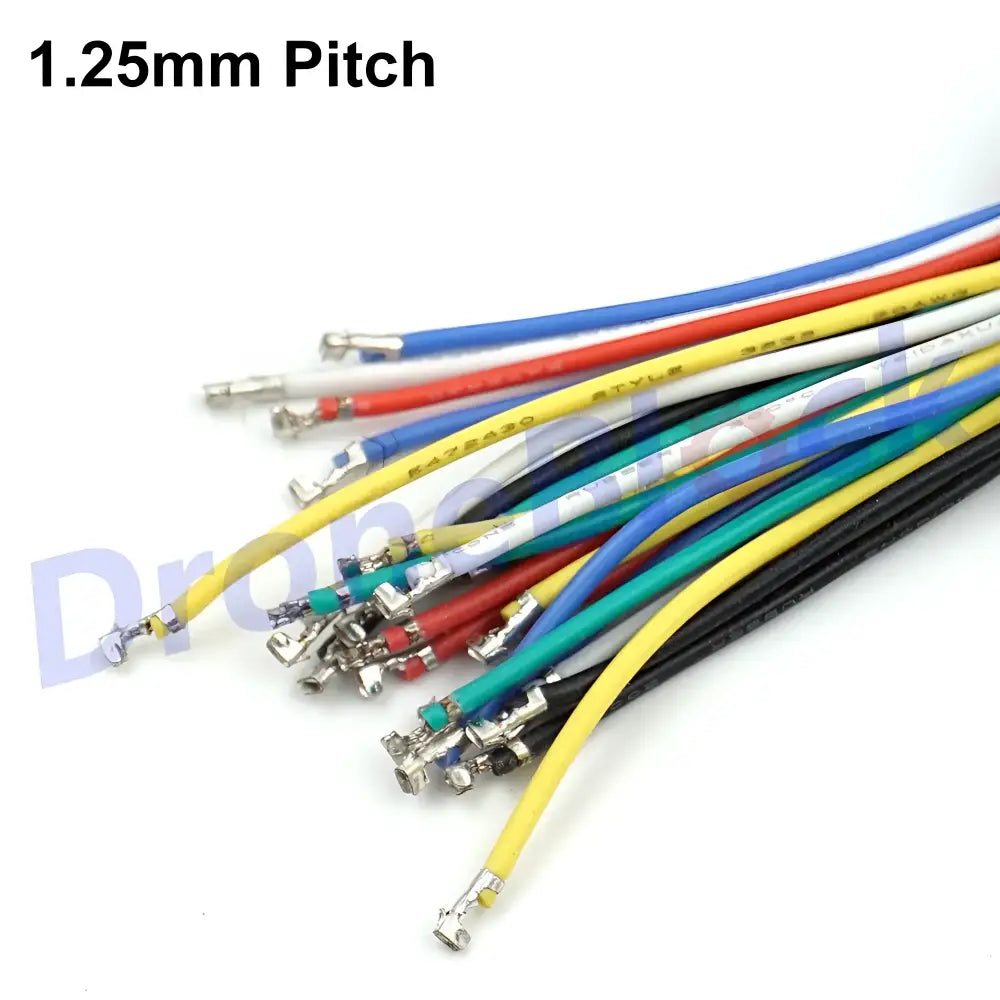

1.25 to 1.25mm pitch: 24pcs ( 6 colors, each color 4 cables)
1.25 to 1.5mm pitch: 24pcs ( 4 colors, each color 6 cables)
1.25 to 2.54mm pitch: 24pcs ( 6 colors, each color 4 cables)

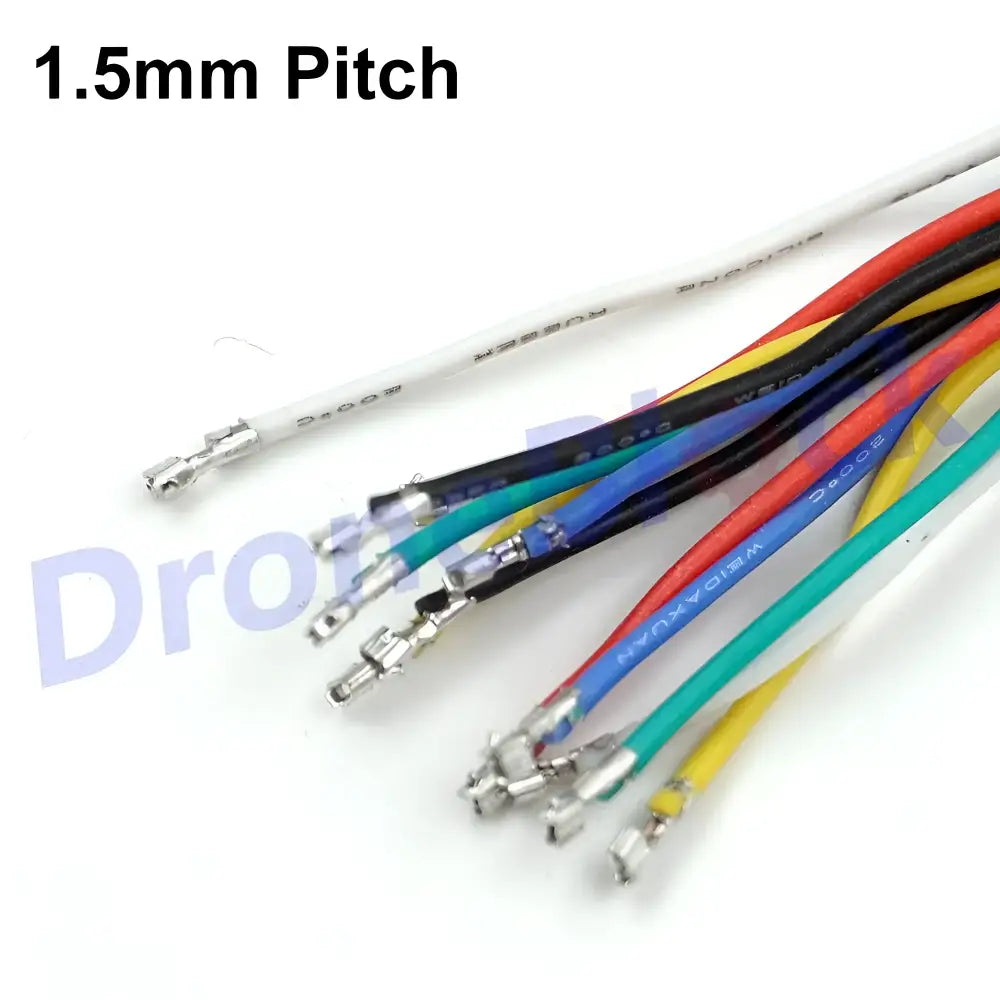

1.5 to 1.5mm pitch: 24pcs ( 4 colors, each color 6 cables)
1.5 to 2.54mm pitch: 24pcs ( 4 colors, each color 6 cables)

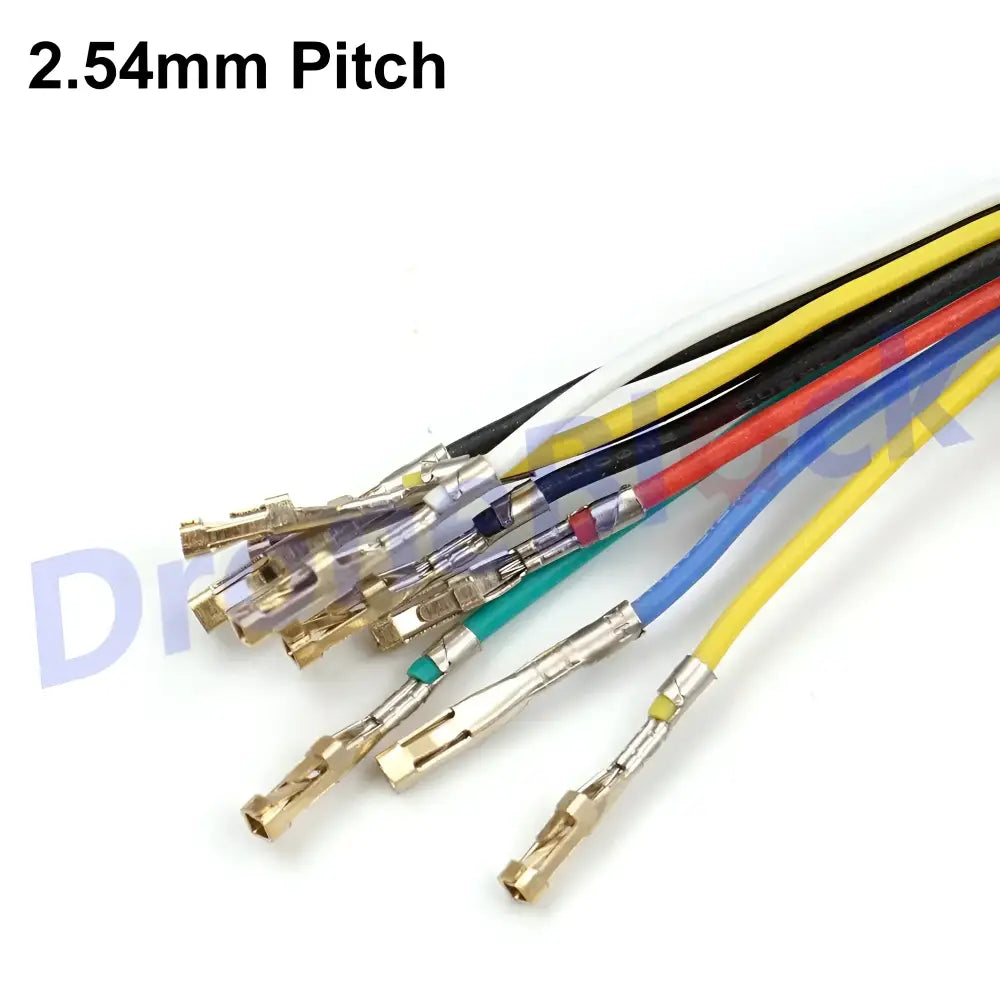

2.54 to 2.54mm pitch: 24psc ( 6 colors, each color 4 cables)
Note: You also need to buy matching connector in our store to use this cables.
Please click the following link to watch the connector and pre-crimped wire assembling demo video:
And you could buy the other sizes: 7cm 10cm 15cm 30cm 40cm
Usually, 1.0mm pitch connector is suitable for some small racing FPV flight controller like CC3D, SP Racing F3,skyline32 etc with cleanflight, betaflight firmware. it is also suitable for some small VTX( video transmitter). 1.25mm pitch connector is suitable for big flight controller like APM, Pixhawk etc..
This cables should cooperate with below connector. you can make an arbitrary cable by just plugging the terminal of the cable into the matching connector manually. So you can array the color order arbitrarily as you want. You can also replace or fix broken cable in your hand.
Ultra soft silicone wire, still has very good flexibility at low temperature. so it can eliminate the vibration transferred to the flight controller.

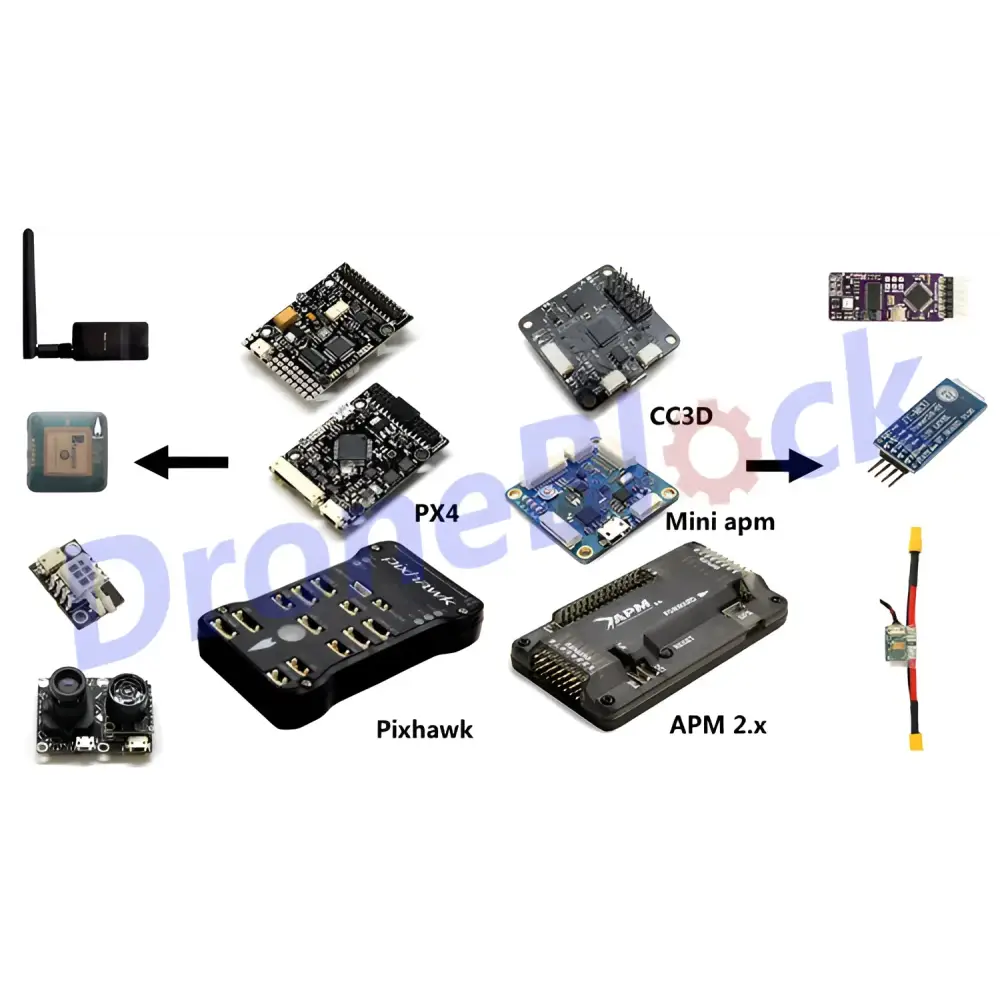

The cables are suitable for Pixhawk/PX4/apm2.x/CC3D/miniapm/skyline32/SP Racing F3 flight controller cooperating with the matching connector in our store, you can achieve connection between flight controller and GPS, Telemetry module, Power module, Bluetooth module, OSD, airspeed meter, optical flow sensor, Bluetooth or ultrasonic sensor etc., it is a necessary component RC hobbyist.
- color: black red white yellow green blue
- Insulating material: Silica gel
Please click on below picture to buy matching plug
