Matek Systems H743-mini Flight Controller

Name: Matek Systems H743-mini Flight Controller
Brand: Dropsouk
SKU: 1755037
Price: 79.7 USD
Availability: InStock
Rating: 4.8 (3 reviews)

SKU: 1755037

$79.70 USD

Tax included. Shipping calculated at checkout.

In stock: 10

Description

DESCRIPTION:

3 LEDs for FC STATUS (Blue, Red) and 3.3V (Red)
1x JST-SH1.0_8pin connector (Vbat / G / Curr / Rx8 / S1 / S2 / S3 / S4)
Dual camera input switch
8V on / off switch

TECHNICAL FEATURES:

Brand: Matek Systems
Item Name: H743-MINI
MCU: STM32H743VIT6, 480 MHz, 1MB RAM, 2MB Flash
IMU: MPU6000 (SPI1) and ICM20602 (SPI4)
Static power: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot
BetaFlight: MATEKH743

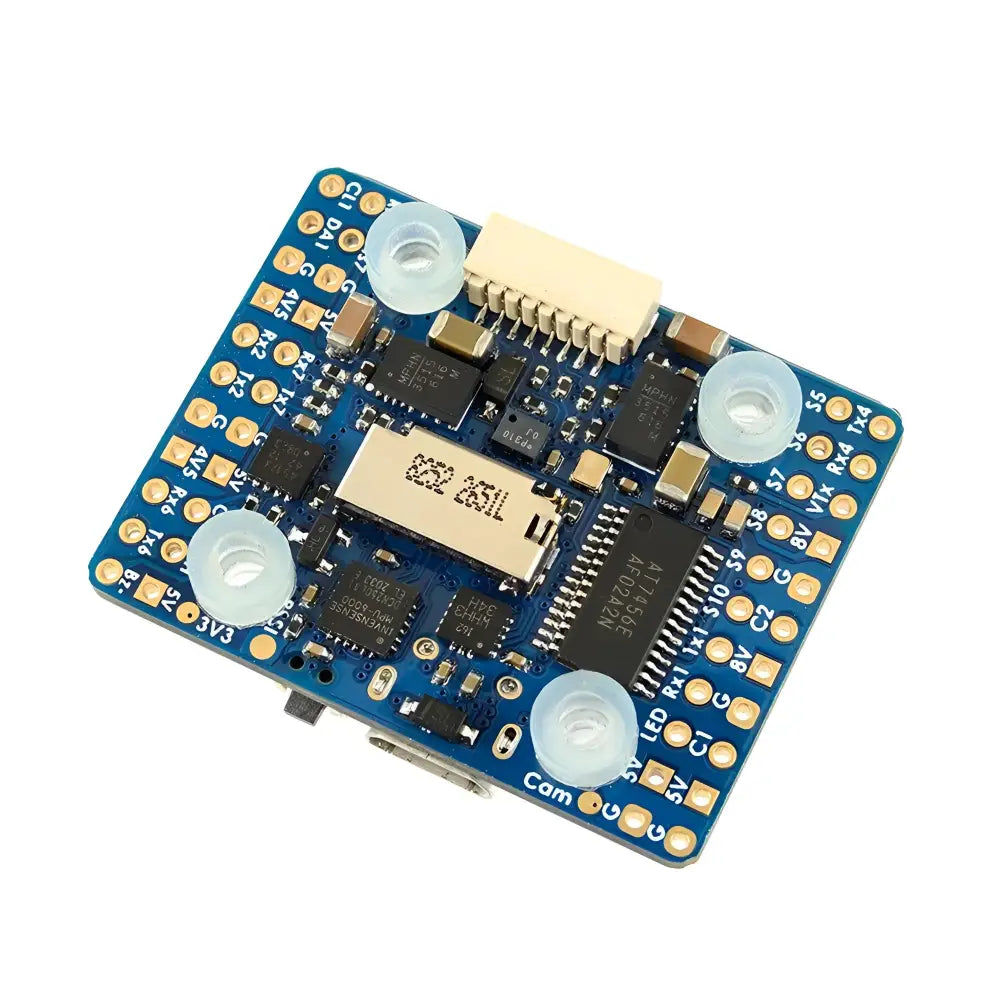

Physical mounting: 20 x 20 mm / Φ3 mm with silicon eyelets
20 x 20 mm / Φ2 mm with silicon and brass eyelets

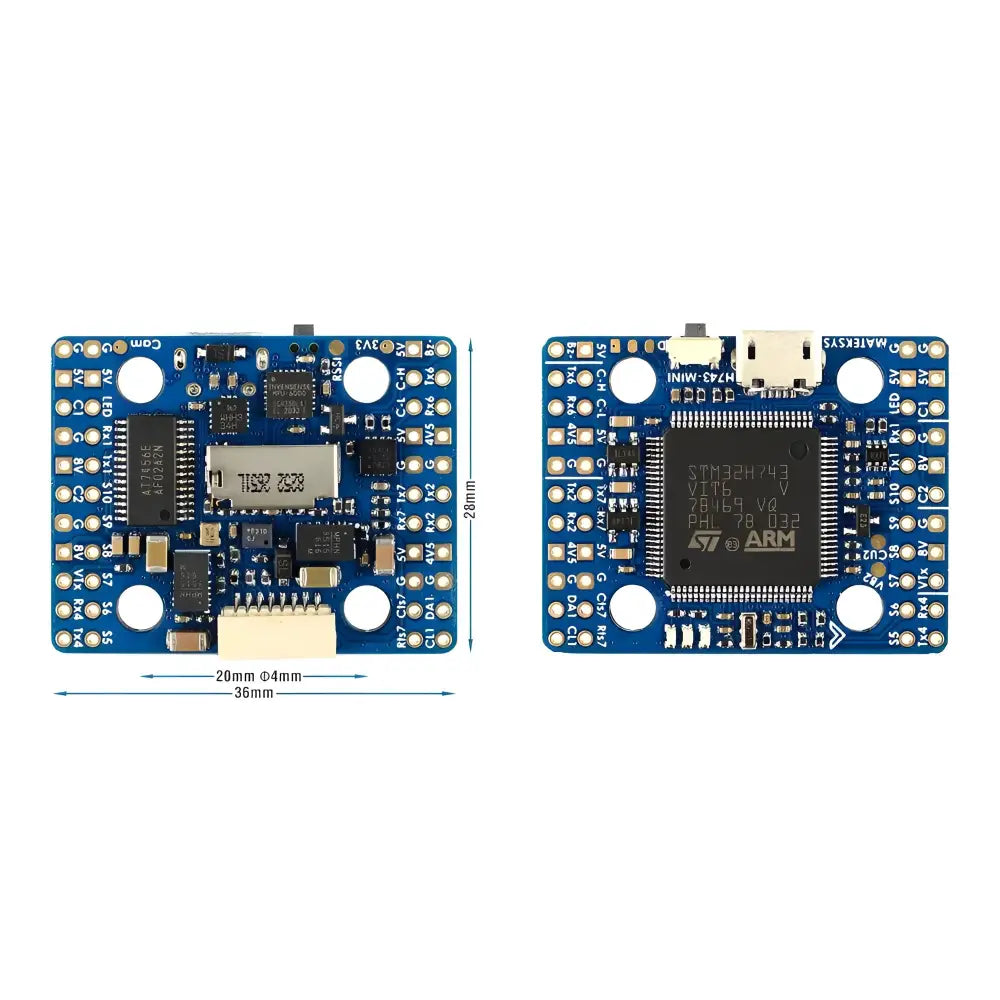

Dimensions: 36 x 28 x 6.5 mm
Weight: 7g

PACKAGE:

1x H743-MINI
6x M4 to M3 silicone grommets
6x M3 to M2 brass eyelets
1x JST-SH1.0_8pin cable, 5cm
2x JST-SH1.0_8pin connectors
