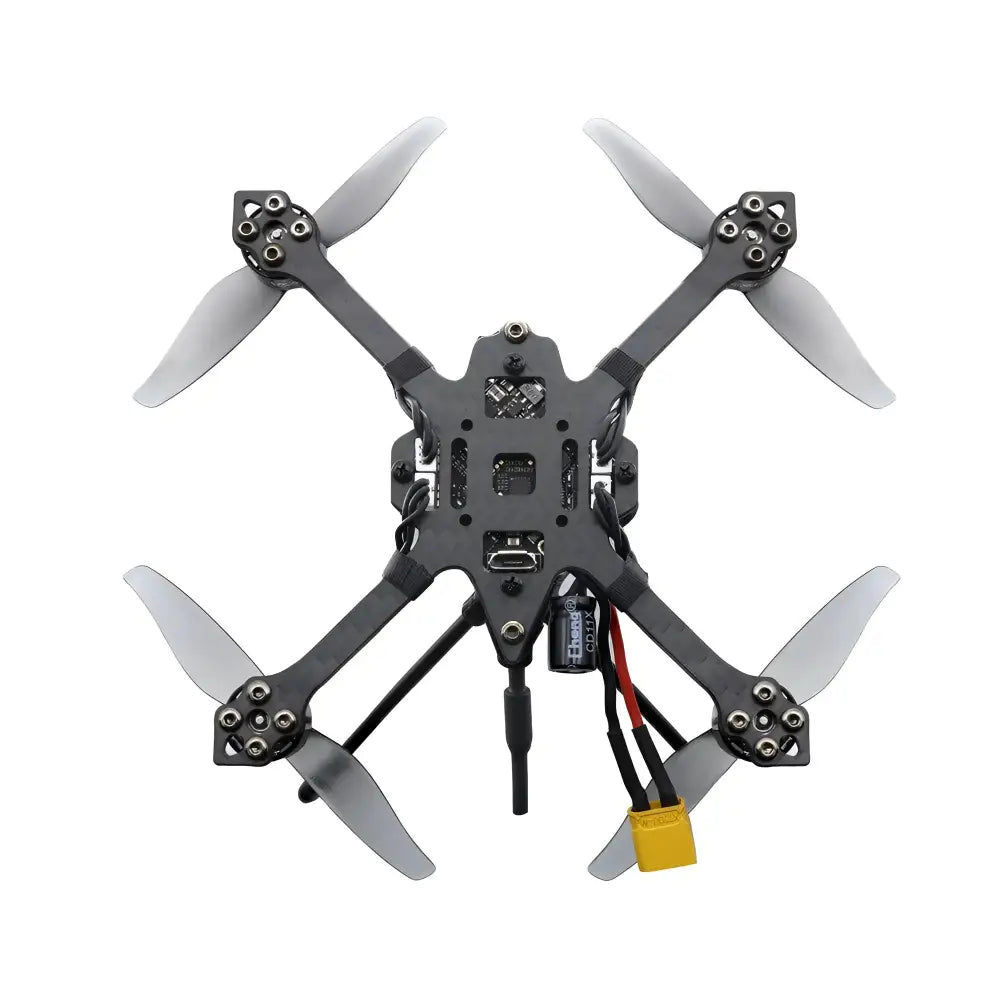

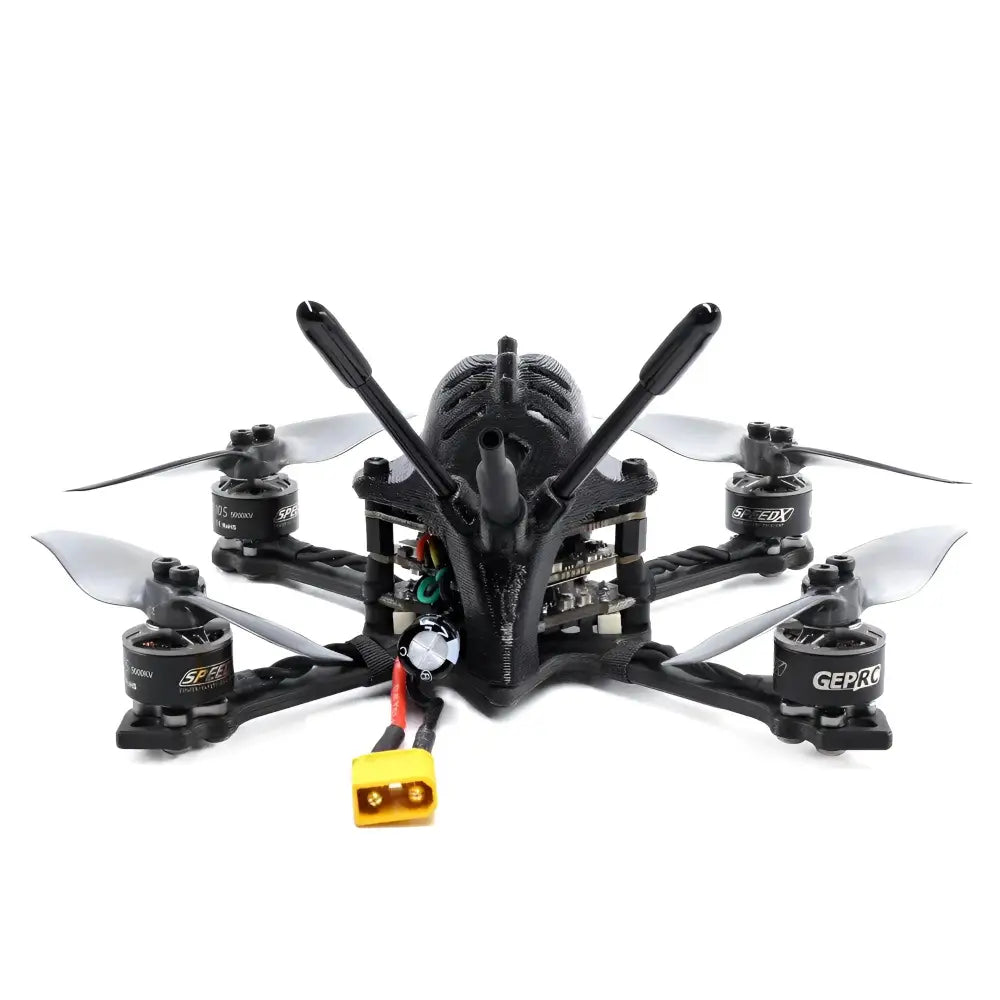

Geprc Skip Hd Fpv Racing Drone with Caddx Baby Turtle

SPECIFICATIONS:

Brand Name: Geprc
Model: SKIP HD
Version: BNF (with Frsky XM + receiver)
Drone Wheelbase: 118mm
Drone arm plate thickness: 2.5mm
Weight: 72 g (without battery)
Flight time: almost 5 minutes in regular flight

GEPRC GR1105 5000KV 3-4S Motor:
Brand Name: GEPRC
Item name: GR1105 5000KV 3-4S brushless motor
KV: 5000KV
Number of cells (Lipo): 3-4S
Configuration: 9N12P
Stator length: 1.9mm
Shaft diameter: 1.5mm
Motor (dimension (Dia. * Len)): 14.2 * 16mm
Rotor: N52H arc magnets
Weight: 6g

GEP-12A-F4 AIO ESC Flight Controller:
Brand: Geprc
Model: GEP-12A-F4
MCU: STM32F411
IMU: MPU6000 gyro / accelerometer (SPI)
OSD: BetaFlight OSD chip with AT7456E
Baro: NO
BEC output: 5V @ 1A
Firmware target: MATEKF411
MCU ESC: BB21F16G
Continuous current: 12A
Entry: 2-4s lipo
Current meter: 210
Target: G_H_30
Size: 28.5 × 28.5mm board, 25.5mm mounting holes (M2)
Installation hole: 25.5 × 25.5mm, M2
Weight: 5.6g
Support for Dshot600, Oneshot, Multishot

Caddx Baby Turtle V2 1080P Camera:
Image sensor: 1 / 2.7 "CMOS sensor
Horizontal: 800TVL
TV system: NTSC / PAL, variable
Video resolution: 1080P @ 60fps / 1080P @ 30fps / 720 @ 60fps
Input power: DC 4.5-20V
FPV FOV: 155 °
FOV recording: 170 °
Mini Illumination: 0.01lux
Image resolution: 2 megapixels
Lens: 1.8mm Turbo Eye Lens
Working current: 380mA @ 5V / 160mA @ 12V (low consumption)
OSD menu: Yes (Media voltage display)
Video files: MP4
Audio: support
Electronic shutter: PAL: 1 / 50-100,000 NTSC: 1 / 60-100,100
S/N ratio: > 60 dB (AGC OFF)
Video output: CVBS
Max Micro SD Card Supported: 8-64GB (Requires Class 10 or above, Recommend Class 10 / UHS-I / UHS-II)
Net weight: 12g (more or less)

FUNCTIONALITIES :

• Ultra light weight
• Small turtle Caddx V2 1080P Caemra
• Reliable electronic equipment, reducing weight
• High definition TPU printing
• Full 3K carbon plate
