Sma-kfd 5mm Flange Female Connector Female For Coaxial Cable

SKU: 1226708
Prix ​​régulier $3.00 USD Prix ​​de vente $3.00 USD Prix ​​régulier $5.00 USD
Vente 40.0% $2.00 USD (40.0%)
Taxe incluse. Shipping calculated at checkout.
En stock
Description

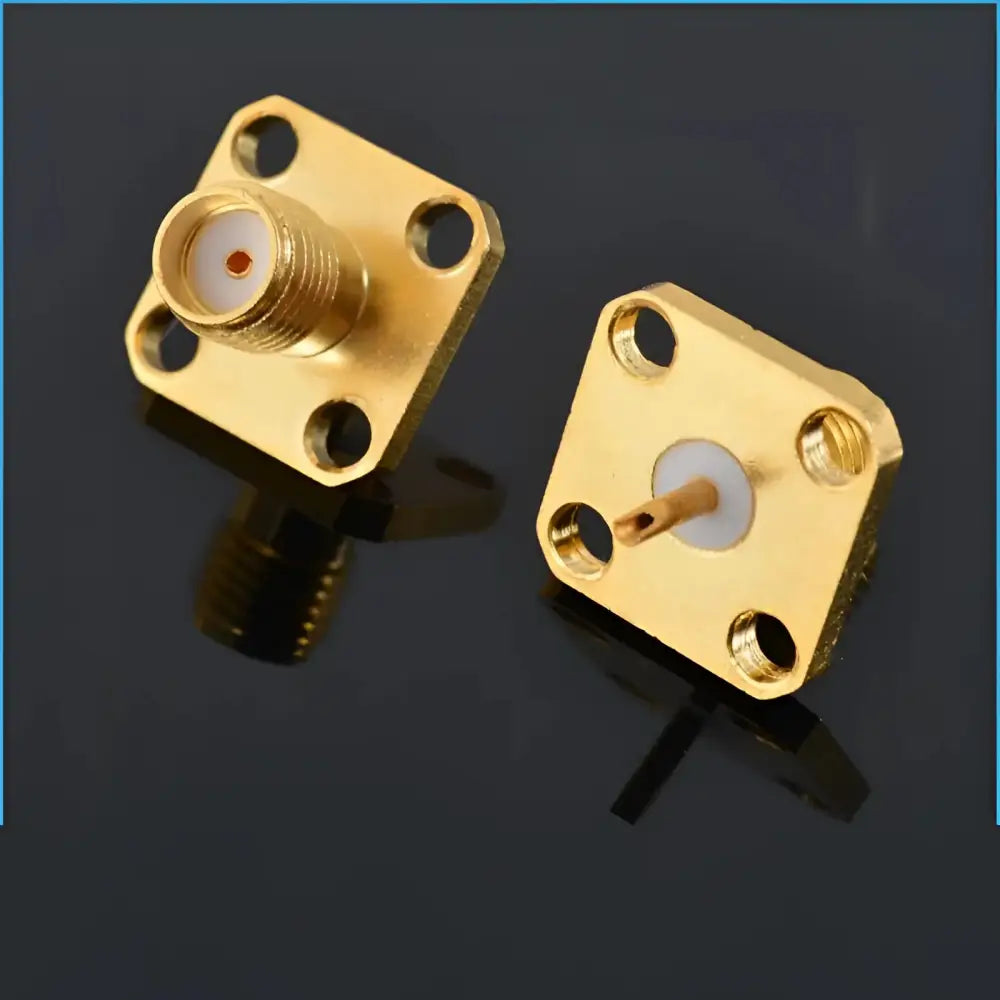

SMA-KFD 5mm Flange Terminal Connector SMA Female 4 Hole Square Plate Panel Straight For Coaxial Cable
SMA-KFD 5mm Flange Female Connector Female For Coaxial CableSMA-KFD 5mm Flange Female Connector Female For Coaxial Cable
Specification
Temp. : -65~+165°C (PE Cable -40~+85°C)
Vibration : MIL-STD-202,Method 213
Impedance : 50Ω
Frequency : DC~12.4GHz(Semi-rigid cable 0~18GHz)
Working Voltage : 335V max (effective)
Withstand Voltage : 1000V rms (Minimum sea level)

Contact Resistance
Center Contact ≤ 3 mΩ
Outer Contact ≤ 2 mΩ
Insulation Resistance ≥ 5000MΩ
Insertion Loss ≤0.15 dB/6GHz

VSWR
Straight soft cable≤1.10+0.002f
Semi-rigid cable≤1.05+0.001f
Curved flexible cable≤1.20+0.003f
Durability≥500 Times(cycles)

Package Included
1 x Connector
